Check out TestrBot, the $300 Universal Test Machine!

headline photov2

Check out the video here!

*What is TestrBot?

TestrBot is a $300 Universal Test Machine that can be used to perform any type of static or dynamic testing in tension or compression up to 200 lbs! It was designed to allow me to run a batch of physical tests on 3D printed specimens at home.

.

*So what can be done with data collected from TestrBot, anyway?

TestrBot only directly measures two things, force and displacement, but we can learn a lot with just those two pieces of information. The graph below was generated using the data collected from the test shown in the video.

Results 1001

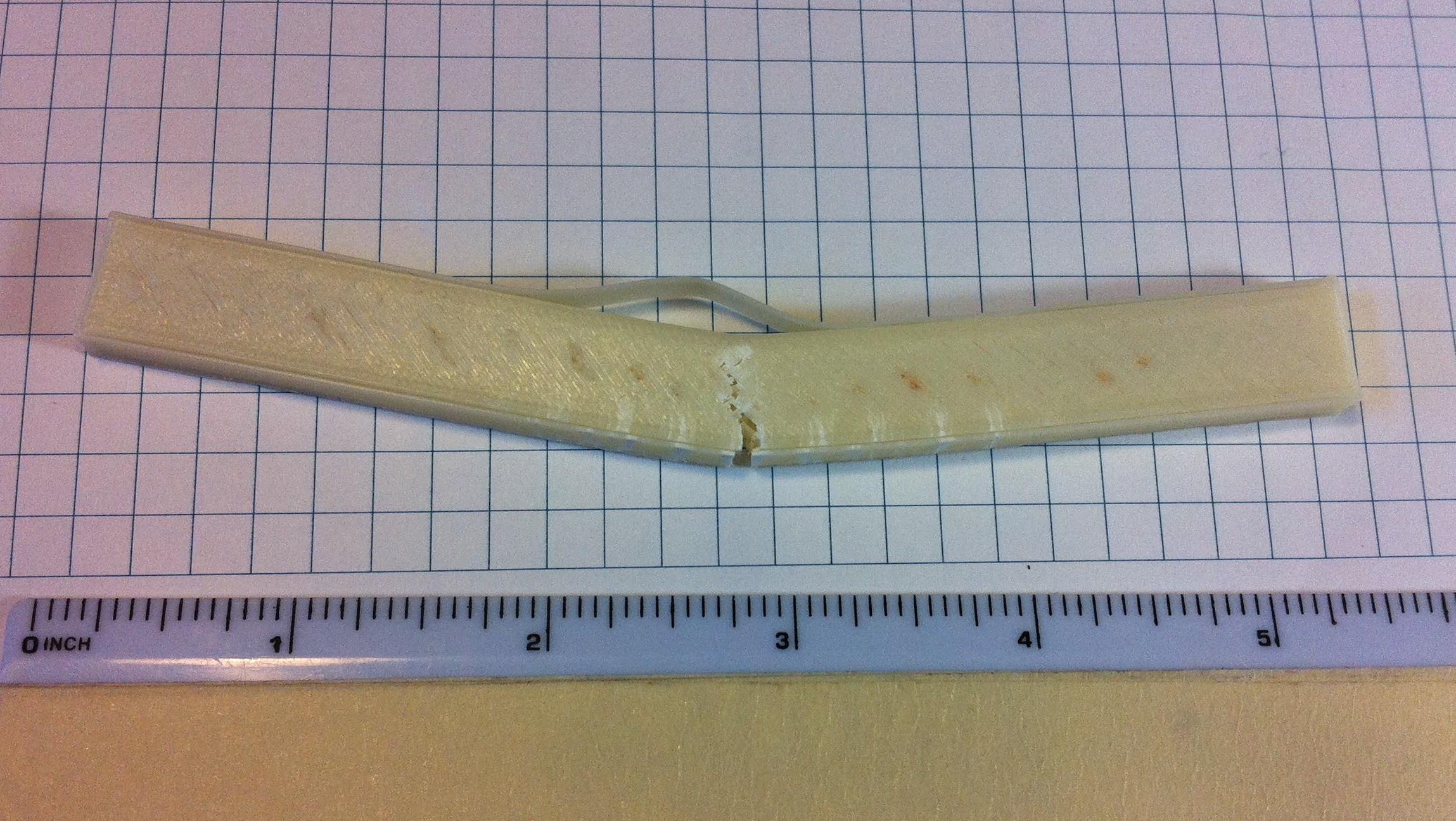

1001

I estimated that the specimen would yield at 58 lbs (3300 psi) but hitting that exact number wasn’t the goal of this test. At this point all I have proven is that I am either good at math or lucky at guessing numbers. (Honestly, I was shocked how close that was though.) The really interesting stuff is yet to come when I print out a lot more specimens that are slightly different from the first so I can isolate the effect of individual variables. At that point having a graph and the above data will make the effects of minor design changes very clear.

.

*How accurate is the data collected?

The displacement measurement resolution is insane. TestrBot can measure distance increments of .00014” or about 1/28th the thickness of a sheet of paper.

The force readings are respectable but still a bit limited due to the 10 bit Arduino. The smallest force it can measure is 0.195 lbs. Still that was small enough to produce that sexy smooth graph above.

.

*How do I know the measurements are correct?

Oh boy, that simple sounding question opens the door to a very long conversation involving traceability, calibrations, and what exactly determines how much a pound weights. It will have to suffice for now to say that all the data readings from TestrBot are repeatable. TestrBot’s force readings are consistent no matter what it thinks a pound is exactly. For what its worth, TestrBot’s load cell is in agreement with the weights at my gym.

Being precise is important because it means that even without official traceability the data produced can still be used for comparative testing, which is all I need it for.

IMG_1094

I don’t always do 120 consecutive dead lifts, but when I do it’s because I’m the nerdiest guy in the room.

*Is $300 a good price for a universal test machine?

Absolutely, especially considering that almost 50% of its total cost went to the load cell alone. Low end professional UTM’s cost of thousands of dollars and the sky is the limit on good ones. This little machine quite capable for its price. It can be used for any type of displacement controlled static tensile or compression testing with the program I wrote. With a bit of tweaking on the program it could even be used to do force controlled fatigue testing (albeit at a slow rate). Those things combined with the versatility of the built in unistrut rails justify the “universal” part of the name.

.

*What else makes it special?

TestrBot is explicitly designed to be replicable. Whenever possible I used 3D printed parts, things available from the hardware store, and failing that from Amazon or Sparkfun. I’ve created a detailed set of build instructions and shared them on Instructables.com. The bonus is that there happens to be a directly applicable contest going on right now: ‘The 3D Printing Contest.’

Prizes include multiple 3D printers and instructables T-shirts, and I’ll tell you what, I will wear the hell out of that shirt if I get one to rub it in my friend’s faces. A new 3D printer would be nice too. 😉 It’d be awesome to see how a name brand printer compares with a homebrew machine. So if you enjoy reading this blog series then please like, share, and VOTE for TestrBot! (You can do it right now!)
.

Looking forward, the first test on the list is ‘Infill Orientation’. I want to determine effect that infill orientation (i.e. direction & angle) has on the strength of the finished part.

What do you think? Which of the common printing infills will be the weakest when loaded off-axis? Which direction IS off axis anyway?
